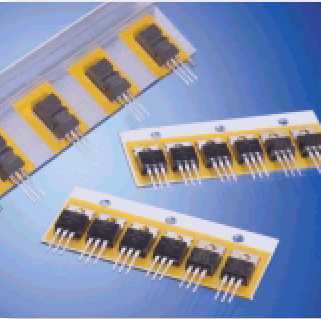

Our high-performance 'TPI' insulation system is based on robust, all-polyimide construction. TPI technology enables the heat-sealing of electrically-isolated copper foil or printed circuitry to aluminum heat sinks --allowing the soldering of power devices directly to heat sinks-- and provides: * Very high thermal transfer -- resistance of only 0.1 degC-sqin/W, or a thermal transfer rate of 2-5X that of conventional insulator pads -- with NO attachment hardware. * Decreased power device operating temperature. Example: 2 degC/W savings for TO-220 vs conventional alumina-filled insulator pad. * Formats for most applications (patented, trademarked FT products): POWERSITE -- mounting discrete devices POWERFLEX -- bonded printed circuits on heat sinks POWERVIA -- solid-metal thermal vias in PCBs * Dielectric reliability -- thin, ceramic-filled Kapton* MT film. * Durable bonding -- very thin coating of thermoplastic polyimide adhesive (only 4 microns per side) that withstands severe continuous operating temperatures, thermal shock, thermal cycling, 85/85. * Cost-effective, single-unit production -- the thermoplastic polyimide adhesive bonds quickly during the high-temperature heat-sealing process. * Enhanced design options -- higher power rating, increased ambient rating, more reliable and/or fewer power devices, elimination of attachment hardware, no pressure dependency (for thermal transfer), flexibility and off-plane connections (PowerFlex), double-sided PCB component mounting (PowerVia). |
Transfer to the future.... |
Fraivillig Technologies Next-Generation Thermal Management |
"thermal management" "power electronics" TO-220 TO-247 Bergquist Chomerics PowerSite PowerVia PowerFlex EIS Fabrico IMS DBC Sil-Pad Cho-Therm "power device" "heat sink" polyimide "thermal via" "power converter" "Union Bridge" "thermal transfer" "electronic cooling" 'thermal interface" "thermal resistance" "thermal impedance" "power device" Denka Thermagon |
PowerSite technology has been licensed to EIS Fabrico for distribution of materials and manufacture of subassemblies. Union Bridge manufactures PowerSite subassemblies and power supply assemblies in Asia. For more information: |
